About Our Ball Bearing Drawer Runners

Kitchen Catch Hardware supplies full-extension ball bearing drawer runners for kitchen cabinetry, bathroom vanities, office furniture, laundry cabinetry, and commercial joinery throughout Australia. Our runners are engineered for consistent performance across high-volume production runs and custom bespoke projects.

The precision ball bearing mechanism delivers smooth, quiet drawer operation that clients notice. A genuine full-extension design means the drawer travels the complete length of the runner — giving full access to the drawer box, which is particularly valuable in pantry and utility applications where items at the back need to be easily reached.

At $10.00 + GST per pair in both 400mm and 450mm, these runners are priced for trade. Volume discounts are available — call or email for a trade quote on your next project.

400mm vs 450mm — Which Size Do You Need?

Choosing the right runner length depends on your cabinet depth and drawer box dimensions. Use this guide to select the right size for your project:

400mm Standard Kitchen

Suits standard kitchen drawer cabinets (typically 450–500mm deep)
Ideal for cutlery, utensil, and small item drawers
Most common size in Australian residential kitchen cabinetry
Compatible with drawer boxes up to ~380mm deep

$10.00 + GST per pair

450mm Pantry & Deep Drawers

Suits deeper pantry units and utility cabinets (typically 550–600mm deep)
Better access to deep drawer contents — pantry, pots & pans
Used in laundry, bathroom, and workshop cabinetry
Compatible with drawer boxes up to ~430mm deep

$10.00 + GST per pair

Not sure which size is right for your project? Send an enquiry or call +61 432 700 001 and we'll help.

Applications

Kitchen Drawers

Pantry Units

Bathroom Vanities

Office Furniture

Commercial Joinery

Laundry Cabinetry

Drawer Runner FAQs

We stock full-extension ball bearing drawer runners in 400mm and 450mm. These two sizes cover the vast majority of Australian kitchen and cabinetry drawer applications. Both sizes are $10.00 + GST per pair.

They are priced and sold in pairs — one left-hand runner and one right-hand runner per set. Each pair is $10.00 + GST, regardless of size (400mm or 450mm).

Our ball bearing drawer runners are rated to 45kg per pair. This is more than sufficient for all standard residential kitchen, bathroom, and laundry drawer applications, including pantry drawers loaded with heavy items.

The rule of thumb is: runner length should be approximately 20–50mm shorter than your cabinet depth, with your drawer box roughly 25mm shorter than the runner. For standard kitchen cabinets (450–500mm deep), the 400mm runner is usually appropriate. For deeper pantry and utility cabinets (550–600mm deep), choose the 450mm. Contact us if you're unsure and we'll advise for your specific application.

Our standard runners are conventional side-mount full-extension ball bearing runners without soft-close or push-to-open. If you require these features, contact us to discuss your requirements and we'll advise on options.

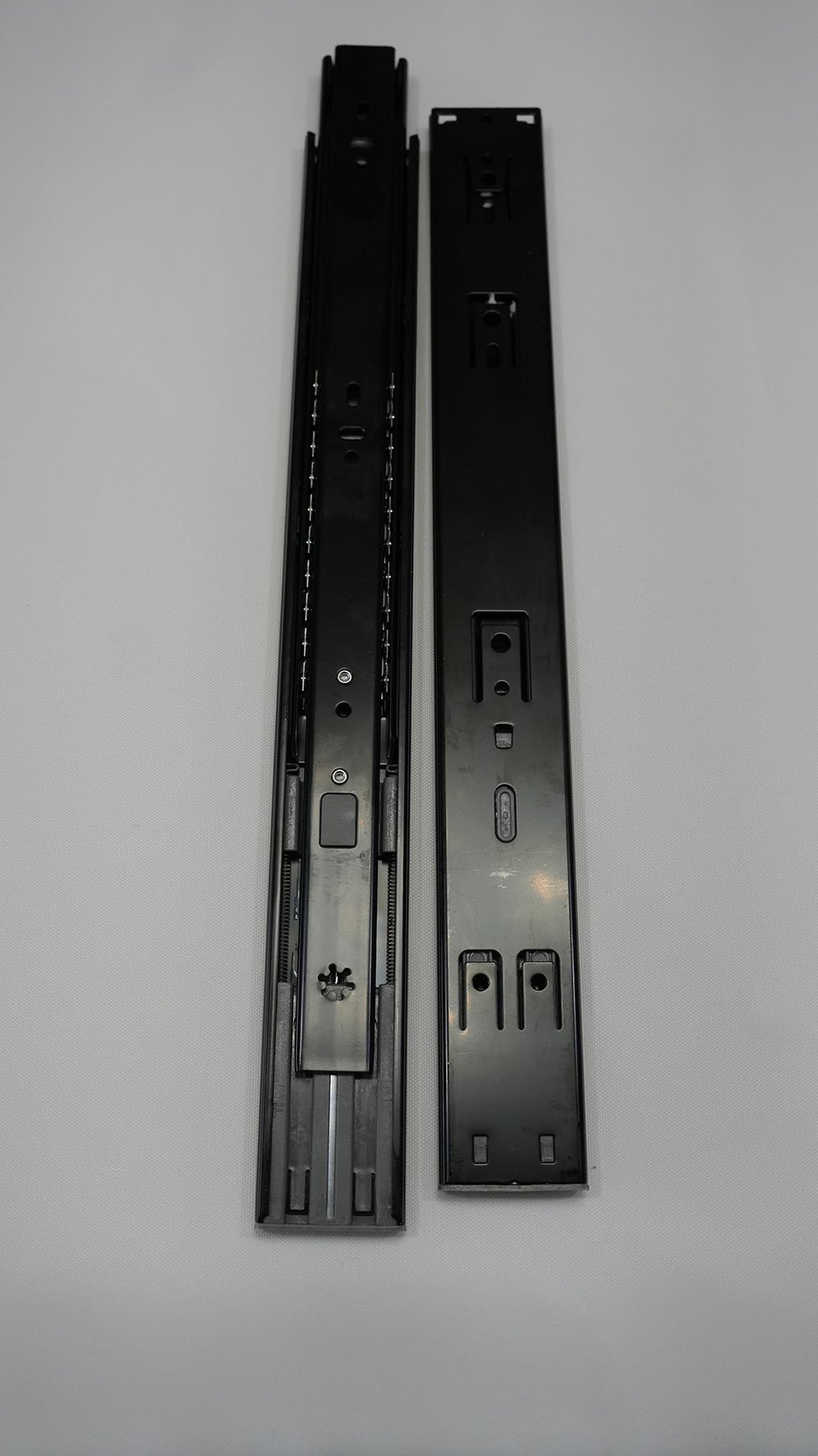

These are side-mount drawer runners. The outer rail attaches to the cabinet side panel and the inner rail attaches to the drawer box. Installation is straightforward with standard tools. A lever-release mechanism allows easy drawer removal once installed.
